RAYLID display提供质优价廉的图形点阵液晶模块，LCD屏标准品型号是业界最广，尺寸最齐全，同时提供客制品或是标准品修改服务以满足客户需求。涵盖122x32, 128x64, 144x32,160x128, 160x160, 160x32, 192x64, 240x64, 240x128, 320x240等分辨率的图形点阵液晶模组。可提供背光有蓝光、绿光、白光、黄绿光、红光、琥珀光、以及RGB七彩背光。玻璃可选 灰色、黑色、黄绿色、蓝色、白色。
瑞立德的图形LCM液晶模块适合工业仪器设备及消费性产品使用，例如:测量仪器、加油机设备、自动贩卖机、咖啡机、电梯、音响、车载、POS系统、或是家电用品、通讯设备、车载、自动化设备等产品运用。<
| Model No. | Resolution: | Outline (L*W*H)mm： | Viewing Area (L*W)mm： | Display Type: | Character/Graph： | Interface: | Built-in Controller： | Backlinght： | |
|---|---|---|---|---|---|---|---|---|---|
| RSCG320240A01 | 320*240 | 157.0*109.0*11.5 | 122.0*92.0 | STN Blue | Character/Graph | 8080/6800 | RA8806 | White LED |  |

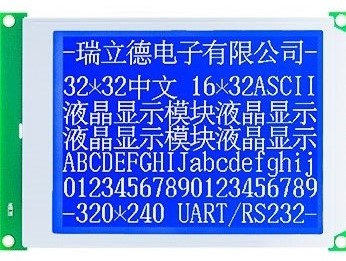

| RSI320240BSNNR-01 | 320*240 | 160.0*109.0*13.1 | 122.0*92.0 | STN Blue | 简体中文+ASCII | RS232 | RLD6601 | White LED | |
| RSCG19264B01 | 192*64 | 130.0*65.0*15.5 | 104.0*39.0 | STN Blue | Graph | 6800 | KS0107/08 | White LED | |
| RSCG19264B02 | 192*64 | 130.0*65.0*15.5 | 104.0*39.0 | STN YG | Character | 6800 | KS0107/08 | Yellow-green | |
| RSI19264BSNR-03 | 192*64 | 130.0*65.0*15.5 | 104.0*39.0 | STN Blue | 简体中文+ASCII | RS232 | RLD6601 | White LED | |
| RSI19264BTKU-02 | 192*64 | 130.0*65.0*15.5 | 104.0*39.0 | STN Blue | 繁体中文+ASCII | UART(CMOS) | RLD6601 | White LED | |
| RSI19264GHKU-02 | 192*64 | 130.0*65.0*15.5 | 104.0*39.0 | FSTN Gray | 韩文+ASCII | UART(COMS) | RLD6601 | White LED | |
| RSI19264YTNR-03 | 192*64 | 130.0*65.0*15.5 | 104.0*39.0 | STN YG | 繁体中文+ASCII | UART(TTL) | RLD6601 | YG LED | |
| RSCG12864B01 | 128*64 | 93.0*70.0*12.5 | 72.0*39.95 | STN Blue | 简体中文+ASCII | I2C | RLD6603 | White LED | |
| RSCG12864B06 | 128*64 | 93.0*70.0*12.5 | 72.0*39.95 | STN YG | 繁体中文+ASCII | I2C | RLD6603 | YG LED | |
| RSCG12864B13 | 128*64 | 93.0*70.0*12.5 | 72.0*39.95 | STB Blue | 韩文+ASCII | I2C | RLD6603 | White LED | |
| RSCG12864B19 | 128*64 | 93.0*70.0*12.5 | 72.0*39.95 | STN Blue | 日文+ASCII | I2C | RLD6603 | Whilte LED | |
| RSI12864BSNR-03 | 128*64 | 93.0*70.0 | 72.0*40.0 | STN Blue | 简体中文+ASCII | RS232 | RLD6601 | White LED | |
| RSI12864YTKU-02 | 128*64 | 93.0*70.0*13.5 | 72.0*40.0 | STN YG | 繁体中文+ASCII | UART(COMS) | RLD6601 | YG LED | |
| RSCG12864C02 | 128*64 | 93*70*12.5 | 70.7*38.8 | Yellow Green | Graph | 6800 | AIP31107/8 | YG LED | |
| RSCG12864C01 | 128*64 | 93*70*12.5 | 70.7*38.8 | STN Blue | Graph | 6800 | AIP31108/7 | White LED | |
| RSCG12864M02 | 128*64 | 93.0*70.0*12.5 | 66.52*33.24 | STN Blue | Character/Graph | 6800 | ST7920/21 | White | |
| RSCG12864M01 | 128*64 | 93.0*70.0*12.5 | 66.52*33.24 | STN-YG | Character&Graph | 6800 | ST7920/21 | Yellow-green | |
| RSI240128BSNR-01 | 240*128 | 139.0*104.0*15.0 | 114.0*64.0 | STN Blue | 简体中文+ASCII | RS232 | RLD6601 | White LED | |
| RSI240128YTNR-01 | 240*128 | 139.0*104.0*15.0 | 114.0*64.0 | STN YG | 繁体中文+ASCII | RS232 | RLD6601 | YG LED | |
| RSI24064BSNR-01 | 240*64 | 180.0*65.0*14.0 | 132.0*39.0 | STN Blue | 简体中文+ASCII | RS232 | RLD6601 | White LED | |
| RSI24064GTNR-01 | 240*64 | 180.0*65.0*14.0 | 132.0*39.0 | FSTN Gray | 繁体中文+ASCII | RS232 | RLD6601 | White LED | |
